36' Boom Lift Tow Behind

36' Boom Lift Tow Behind

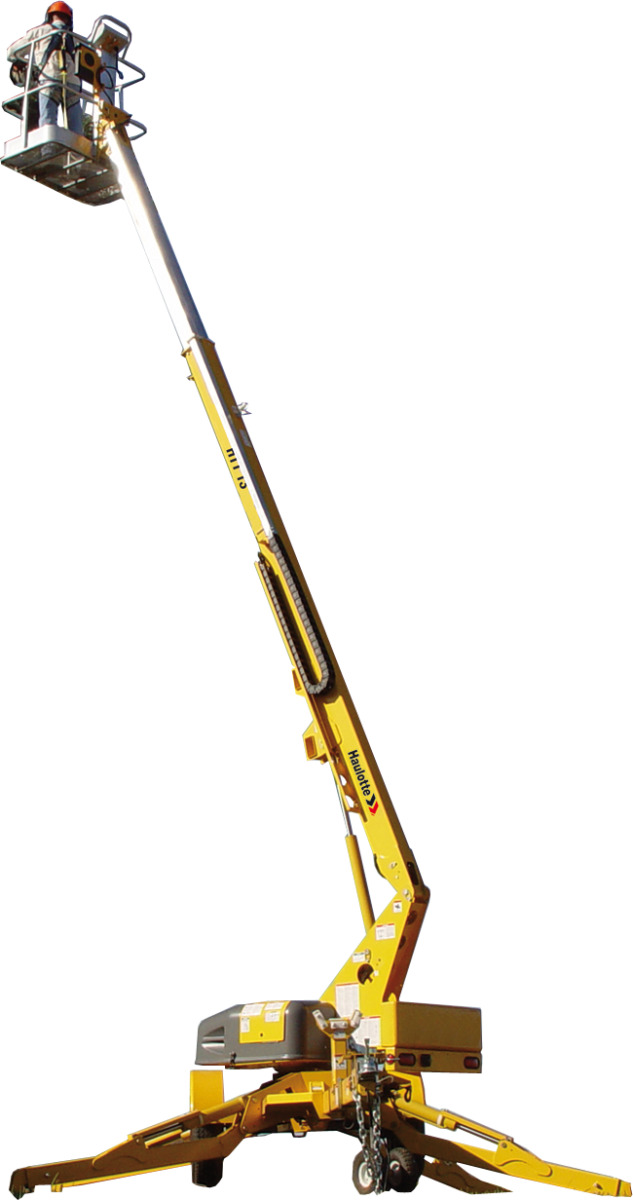

Meet the new 3632T Telescopic Aerial Work Platform. The trailer-mounted boom lift provides 42' of working height and 32' of outreach and features an automatic, self-leveling hydraulic outrigger system that allows for setup in 30 seconds when all four outriggers are deployed simultaneously.
Working height 43 ft 6 in
Platform height 37 ft 6 in
Horizontal outreach (from centerline) 32 ft
Horizontal outreach (from edge of footpad) 27 ft
Up and over height N/A
Lift capacity 500 lbs
Length - stowed 22 ft 8 in
Width stowed 5 ft 6 in
Height stowed 6 ft 6 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib - length N/A
Jib - Vertical Motion N/A
Tow speed rating 65 mph
Leveling capability 12.5 °
Tire size ST 225/75 R15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 200 lbs
Weight (no options) 4440 lbs
Widest Point 13 ft 9 in
Widest Point 13 ft 6 in
