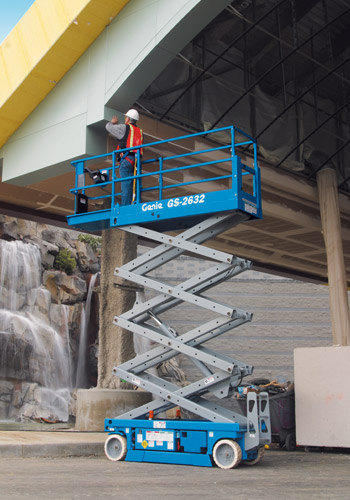

26′ Slab Manlift Scissor

Description

System Voltage 24 V
Number of Batteries 4
Operating Weight 4413.7 lb
Hydrauilc System Fluid Capacity 3.8 gal 14.2 L
Max Speed 2.2 mph 3.5 km/h
Tire Size 15x5x11
Tire Fill/Type Solid non-marking
Max Working Height 32.5 ft in 9920 mm
Max Platform Height 26 ft in 7920 mm
Max Platform Weight Capacity 500.4 lb 227 kg
Platform Length 89 in 2260 mm
Platform Width 31.9 in 810 mm
Lift Time 30 sec
Lower Time 40 sec
Deck Extension 3FT
Overall Length 8 ft in 2440 mm
Overall Width 2.7 ft in 810 mm
Height w/ Rails 7.4 ft in 2260 mm
Height w/o Rails 6.3 ft in 1910 mm
Wheelbase 6.1 ft in 1850 mm
Turning Radius 7 ft in 2130 mm
Ground Clearance 3.5 in 90 mm
