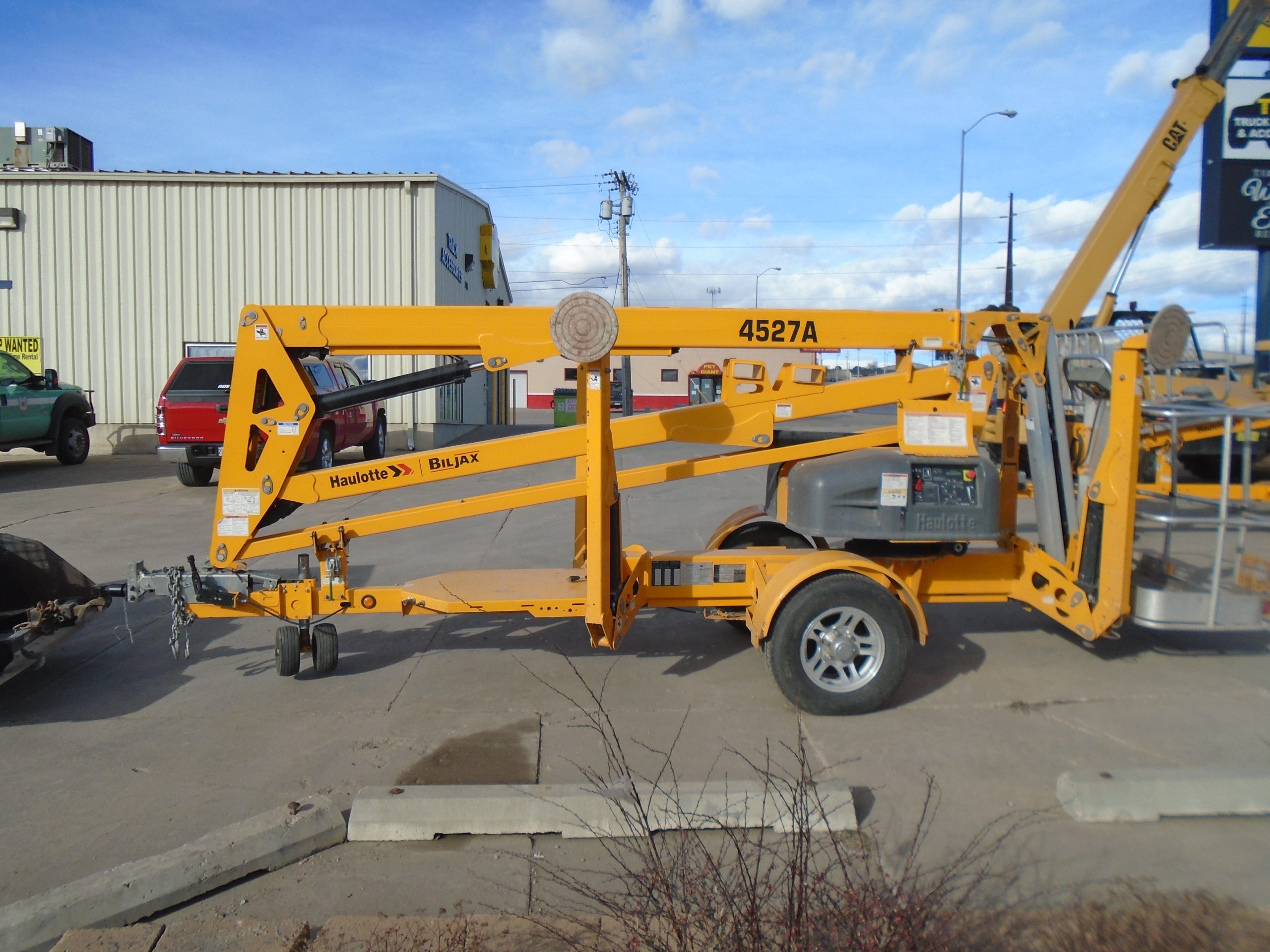

45′ Towable Manlift 4527A

Description

Technical data:
Working height 51 ft
Platform height 45 ft
Horizontal outreach (from centerline) 27 ft
Horizontal outreach (from edge of footpad) 21 ft
Up and over height 20 ft 9 in
Lift capacity 500 lbs
Length – stowed 20 ft 8 in
Width stowed 5 ft 6 in
Height stowed 6 ft 8 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib – length 4 ft 3 in
Jib – Vertical Motion 150° (+70 / -80)
Tow speed rating 65 mph
Leveling capability 12.5°
Tire size ST 225/75 R15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 290 lbs
Weight (no options) 4200 lbs
Widest Point 13 ft 9 in
