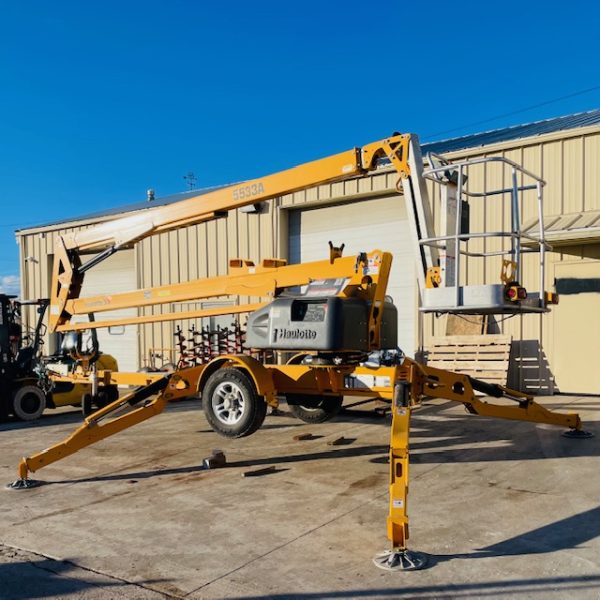

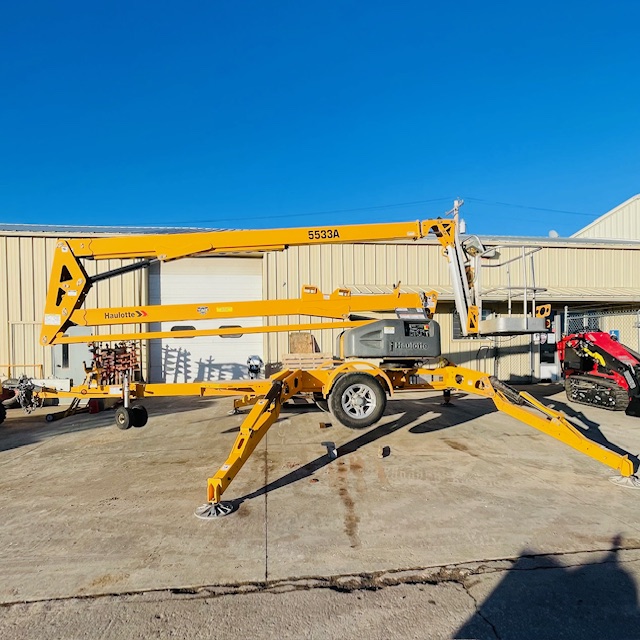

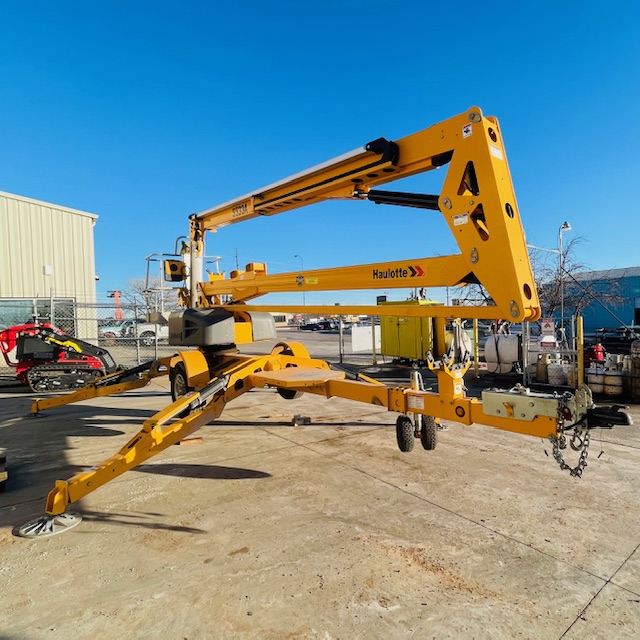

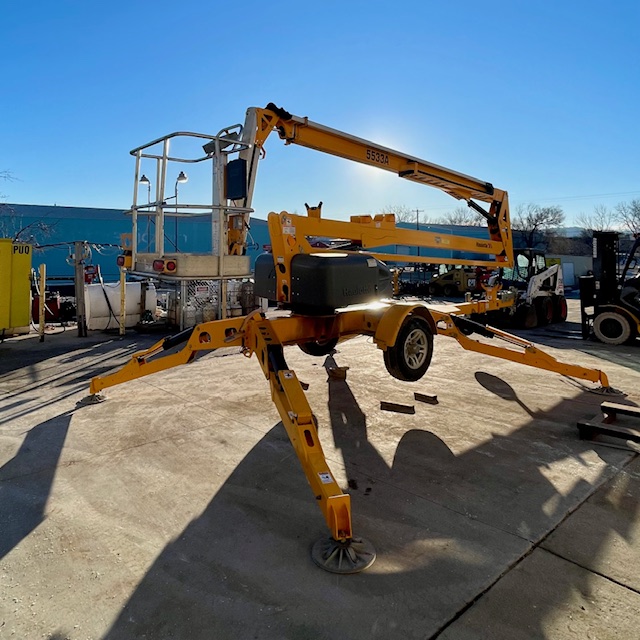

55′ Towable Manlift 5533A

Description

Working height 61 ft 3 in
Platform height 55 ft 3 in
Horizontal outreach (from centerline) 33 ft 5 in
Horizontal outreach (from edge of footpad) 27 ft 4 in
Up and over height 23 ft 1 in
Lift capacity 500 lbs
Length – stowed 23 ft 8 in
Width stowed 5 ft 7 in
Height stowed 6 ft 9 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib – length 4 ft 3 in
Jib – Vertical Motion 150° (+70 / -80)
Tow speed rating 65 mph
Leveling capability 12.5 °
Tire size ST 225/75 R15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 335 lbs
Weight (no options) 4800 lbs
Widest Point 14 ft 8 in
Widest Point 15 ft
