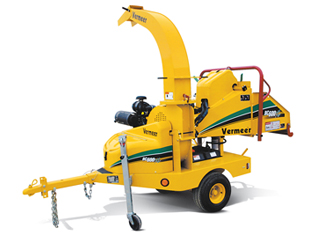

6″ Wood Chipper

Description

BC600XL Specifications
General
Weight: 1900 lb (861 kg)
Length: 110″ (279 cm)
Width: 53.5″ (135 cm)
Height: 94″ (239 cm)
Engine
Make/Model: Kohler Command Pro 27
Gross hp: 27 hp (20 kW) @ 3600 rpm
Max. torque: 42.7 ft-lb (54 Nm) @ 3000 rpm
Type of fuel: Gas
Number of cylinders: 2
Capacities
Fuel tank: 7 gal (26 L)
Hydraulic tank: 7 gal (26 L)
Cutting System
Disc size: 24″ dia. x 1.25″ width
(61 cm x 3.2 cm)
Speed: 1835 rpm
Knives: Two 5/8″ x 3.5″ x 8″
(1.6 cm x 8.9 cm x 20 cm)
Bedknife: 4-edge, 3/4″ x 5″ x 6.6″ A8 steel
(1.9 cm x 13 cm x 16.8 cm)
Feed/Discharge System
Infeed opening: 6″ x 6″ (15 cm x 15 cm)
Feed-table length: 64″ (163 cm)
Feed-table height: 30″ (76 cm)
Feed-roller style: One horizontal, 8″ (20 cm) dia.
Infeed rate: 0 fpm – 230 fpm
(0 m/min – 70.1 m/min)
Discharge height: 94″ (239 cm)
Chute rotation: 240°
Chassis
Frame: 11-gauge
Wheels: 8″ x 7″ (20 cm x 18 cm) – 5-bolt
Tires: 18.5″ x 8.5″ x 8″ (47 cm x 21.6 cm x 20 cm)
Axle/Suspension: 2000 lb (907 kg) torsion axle
Electric brakes: Optional
System voltage:12V
Max Tow Speed – 50 mph
