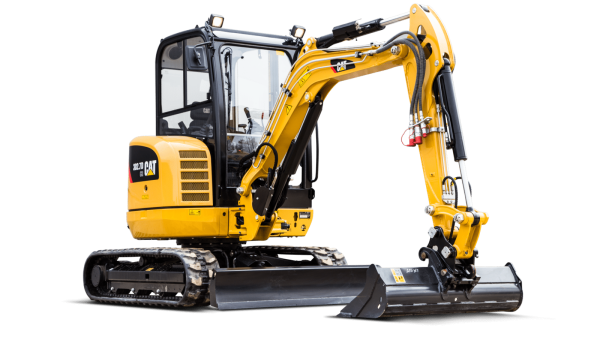

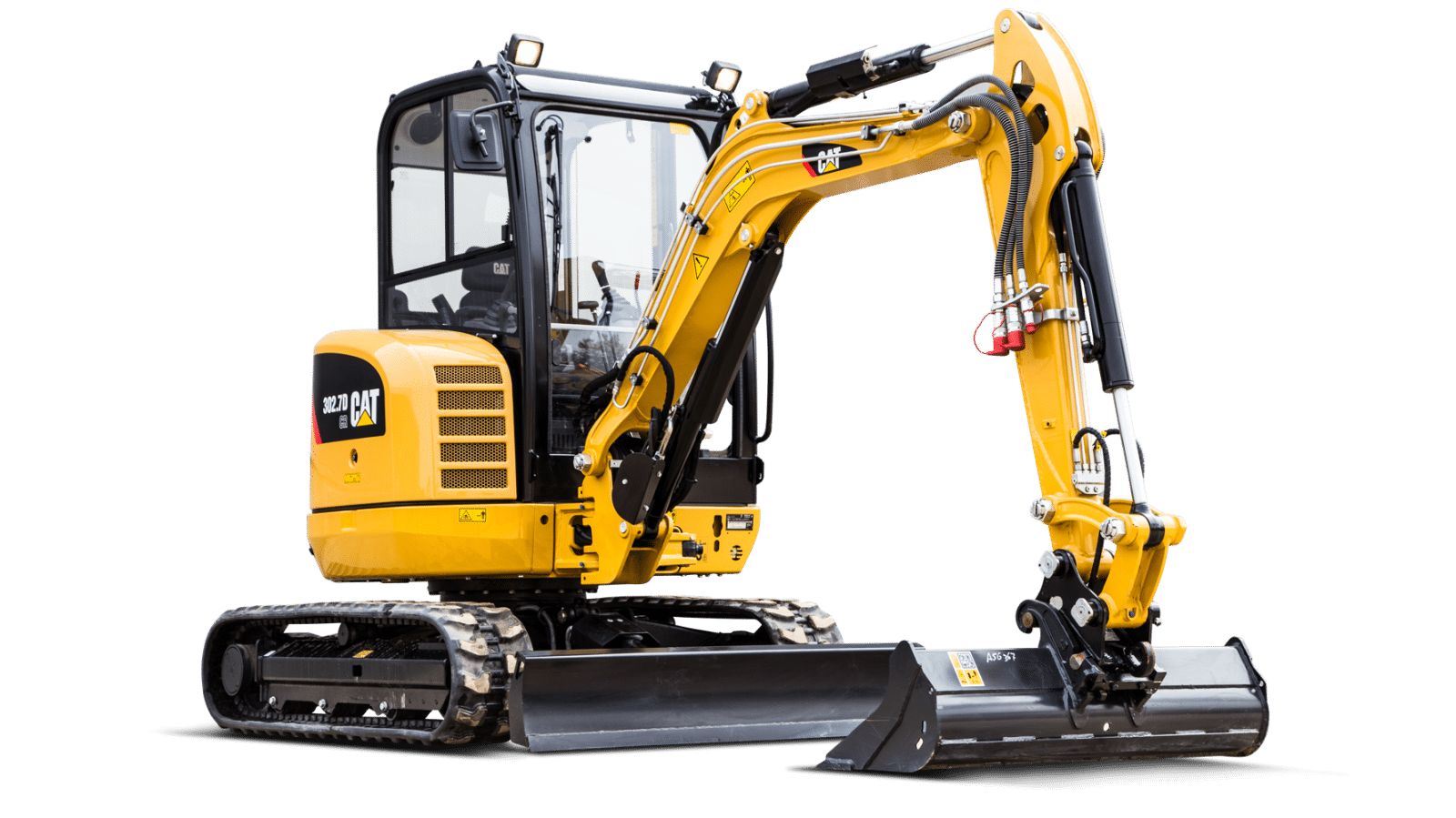

CAT 302.7CR #1

Description

Engine Model Yanmar 3TNV76
Net Power 20.7 HP
Gross Power 24.3 HP
Displacement 68.0 in³
Rated Net Power – ISO 9249 20.7 HP

Weights
Operating Weight Ext Car 6800lb
Operating Weight Reg Car 6000lb

Dimensions
Boom Swing Angle – Left 75.0 °
Boom Swing Angle – Right 50.0 °
Height 7.9 Ft
Length – Undercarriage 79.0 in
Maximum Dig Height 4170/4300 mm (13 Ft 8 in/14 Ft 1 in)
Maximum Digging Depth 2544/2744 mm (9 Ft 0 in)
Maximum Dozer Dig Depth 16.0 in
Maximum Dozer Lift Height 15.0 in
Maximum Dumping Height 2840/2970 mm (9 Ft 4 in/9 Ft 8 in)
Maximum Reach 4613/4805 mm (15 Ft 1 in/15 Ft 10 in)
Maximum Reach – Ground Level 4481/4681 (14 Ft 8 in/15 Ft 5 in)
Maximum Vertical Dig Depth 1962/2152 mm (6 Ft 5 in/7 Ft 1 in)
Minimum Front Linkage Swing Radius 21.0 in
Tail Swing Radius 30.0 in
Track Width 30.0 in
Transport Length – Arm Lowered 14.0 Ft
Width 5.15 Ft
Travel System
Gradeability 30°/58%
Travel Speed 2.1 km/h/3.8 km/h (1.30 mph/2.36 mph)
Hydraulic System
Operating Pressure – Equipment 3263.0 psi
Operating Pressure – Travel 3263.0 psi
Operating Pressure – Swing 2987.0 psi
Auxiliary Circuits – Primary 52.2 L/min at 225 bar (13.8 gal/min at 3,263 psi)
Auxiliary Circuits – Secondary 30.8 L/min at 206 bar (8.1 gal/min at 2,988 psi)
Maximum Bucket Force 5058.0 lb
Maximum Stick Force – Standard/Long 15.4 kN/13.6 kN (3,462 lbf/3,057 lbf)
Pump Flow at 2,500 rpm 23.6 gal/min
Blade
Width 61.9 in
Height 11.4 in
Dig Depth 16.5 in
Lift Height 15.0 in
Service Refill Capacities
Fuel Tank Capacity 9.3 gal (US)
Hydraulic Tank Capacity 7.0 gal (US)
