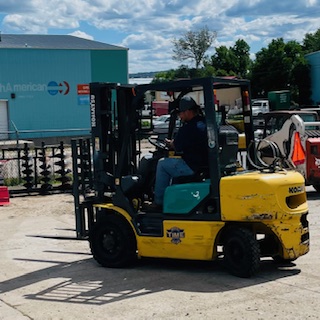

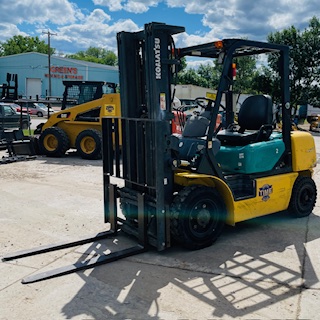

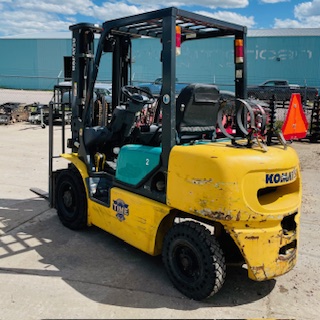

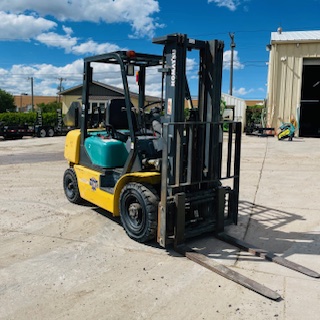

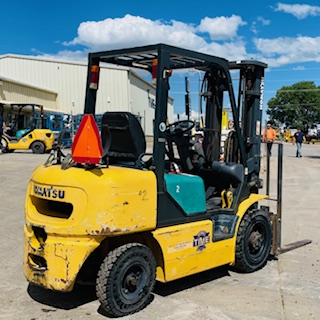

KOMATSU FORKLIFT #2 BLK TIRE 5000LB

Description

A. Length to Fork Face 7.7 ft in 2340 mm
B. Overall Width 3.5 ft in 1060 mm
C. Overall Height – mast lowered 7.1 ft in 2170 mm
D. Wheelbase 4.6 ft in 1400 mm
E. Ground Clearance 4.1 in 105 mm
F. Height to Top of Overhead Guard 6.6 ft in 2000 mm
G. Max Fork Height 10.7 ft in 3250 mm
MAST
H. Mast Tip Forward 6 degrees
I. Mast Tip Rear 10 degrees
Specification
Model K21
Power 60.1 hp 44.8 kw
Torque 115 lb ft 155.9 Nm
Power Measured @ 2950 rpm
Displacement 126 cu in 2.1 L
Torque Measured @ 1600 rpm
Fuel Type Gasoline
Number of Cylinders 4
Operational———–
Operating Weight 8180 lb 3710.4 kg
Tire Type Cushion
Number of Front Wheels 2
Number of Rear Wheels 2
Max Speed 10.3 mph 16.6 km/h
MAST———-
Load Capacity 5000 lb 2268 kg
Load Center 23.6 in 600 mm
Number of Mast Sections 2
Mast Tip Forward 6 degrees
Mast Tip Rear 10 degrees
Lift Speed 120 ft/min 36.6 m/min
Lower Speed 98 ft/min 29.9 m/min
Dimensions———-
Length to Fork Face 7.7 ft in 2340 mm
Overall Width 3.5 ft in 1060 mm
Overall Height – mast lowered 7.1 ft in 2170 mm
Max Fork Height 10.7 ft in 3250 mm
Wheelbase 4.6 ft in 1400 mm
Turning Radius 6.5 ft in 1970 mm
Height to Top of Overhead Guard 6.6 ft in 2000 mm
Ground Clearance 4.1 in 105 mm
Right Angle Stack 7.9 ft in 2405 m
